To request a bid:

Feel free to drop a plan set at our office. Please, call (636 671-4215) first to ensure someone is available.
You may submit PDF and DWG (best) plans to us by attaching a file to email to gravoistruss@hotmail.com . Please, include
your contact information (Name & Phone) in the message box.
Scanned (PDF) sketches with dimensions, pitches, etc. Please, include your contact information
(Name & Phone) in the message box. Image files (pictures jpg, bmp) seldom work but we’ll try.
For smaller simple jobs just fill in the information below.

NAME

PHONE

Free Text

BUILDING

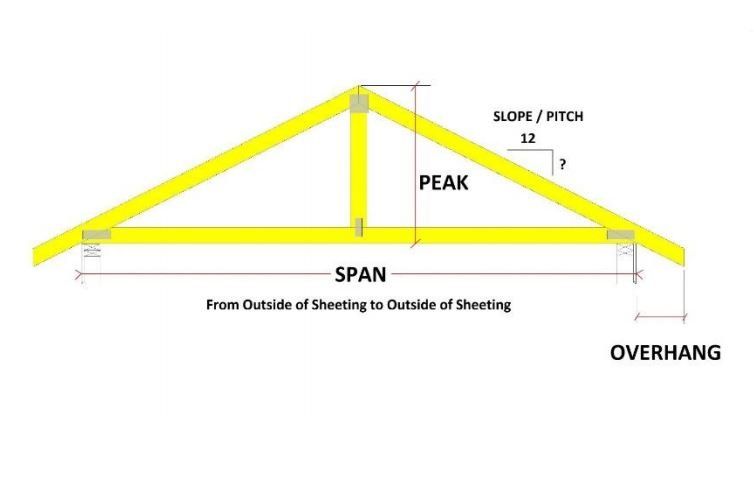

WIDTH / SPAN – Normally outside of sheeting to outside of sheeting. (TAILS NOT INCLUDED)

LENGTH / RUN

GABLES (how many)

HIP (yes or pitch if different)

PITCH / SLOPE (eg. 6/12) OR

PEAK HEIGHT

OVERHANG (We normally make our tails 1-1/2” short – a 1’ overhang is 10-1/2”. If you want 12” include “full” in the space.)

LEFT (IF DIFFERENT)

RIGHT (IF DIFFERENT)

COMMONS - FLAT BOTTOM CORD (type all or specify how many) assumed if not scissors

SCISSORS – VAULT / CATHEDRAL (type all or specify how many)

WALLS (4”, 6”, other.) Important for scissor trusses.

TRUSS SPACING (distance “ON CENTER” between trusses) 2’ OC assumed if left blank

Free Text

FOR ADDITIONS

WIDTH of existing at connecting location. (bottom cord length of existing truss (best))

PEAK HEIGHT of existing structure at connecting location. Note off center peak below.

OVERHANG of existing at connecting location.

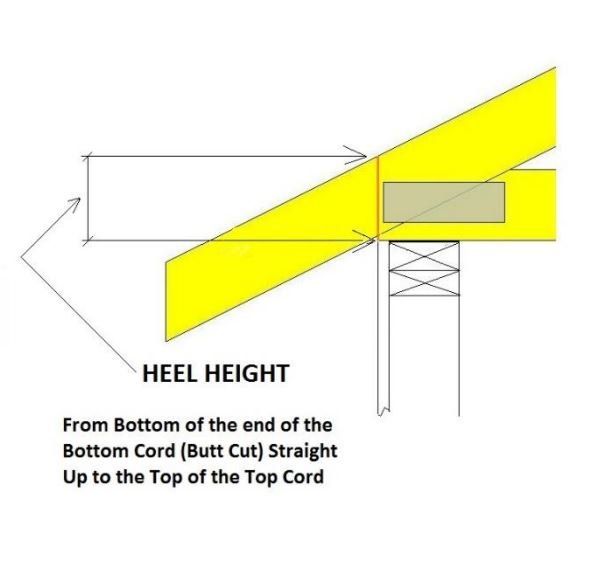

HEEL HGT of existing trusses at location.

Free Text

JOB LOCATION (customer information if contractor)

(Required for delivery and determines the type of truss drawings you need for permits.)

JOB NAME (optional)

JOB ADDRESS

JOB CITY

STATE

ZIP

Free Text

Please, provide the following information if this is your first time

requesting a bid.

NAME or COMPANY NAME

ADDRESS

CITY

ZIP

EMAIL ADDRESS

PHONE (best)

Other information you wish to provide
